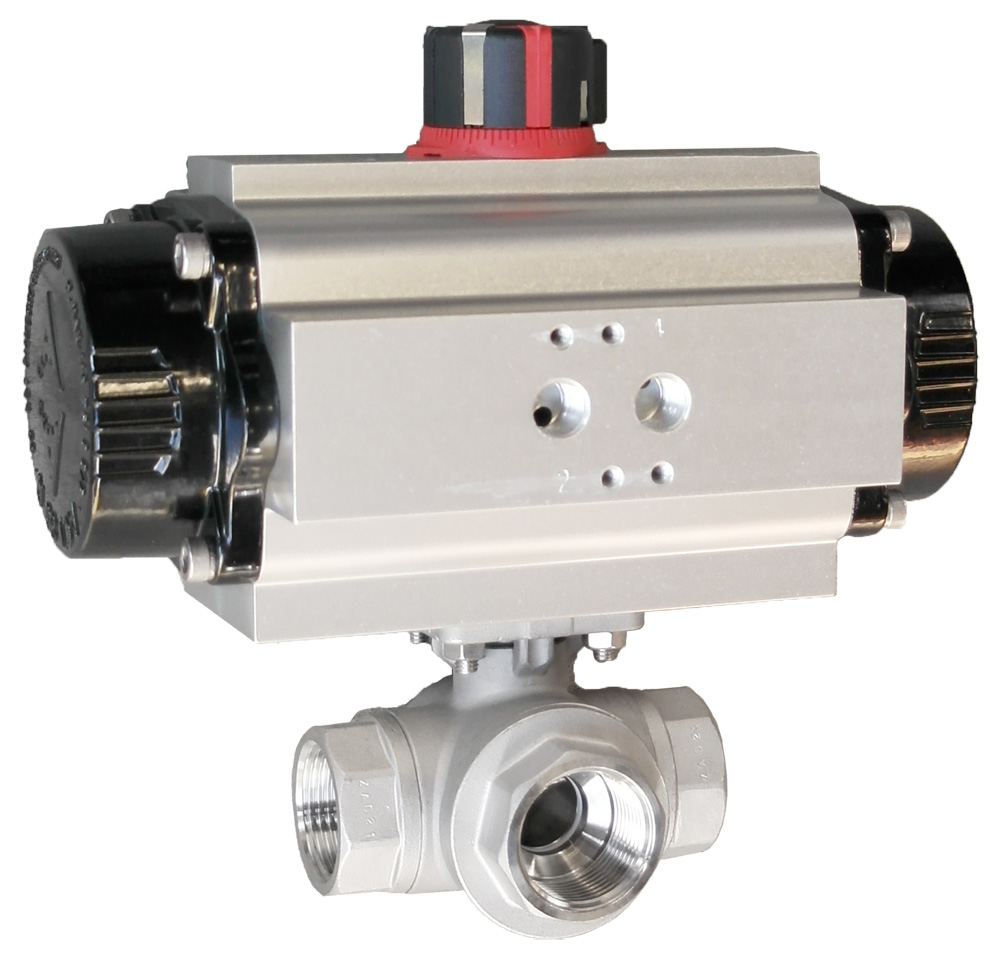

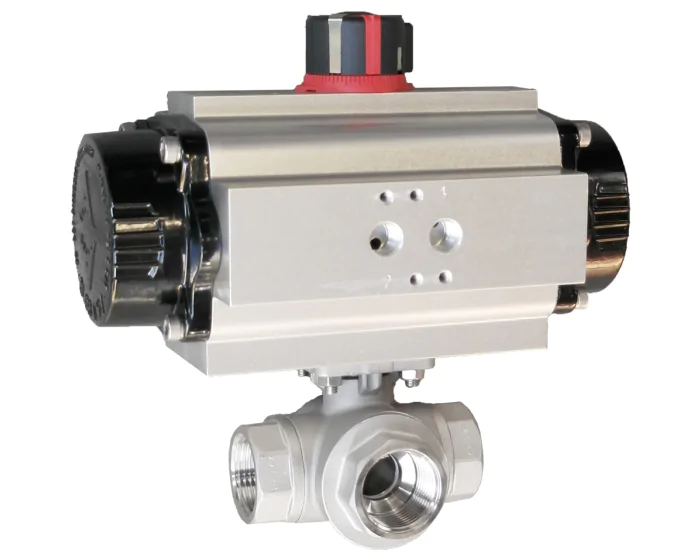

3 way stainless steel ball valve 1370L/AS 1/2'' + ASR40
€245.84(excl. btw)
The AS model is a high-performance pneumatic spring-return actuator designed for reliable valve control. It features an anodized aluminum body, an ISO 5211 connection, and is suitable for demanding industrial automation applications.
In stock Subject prior to sales
Categories :
Kogelkranen
Three way ball valve with floating ball and reduced bore Body in stainless steel ASTM A351 Gr. CF8M Ball in stainless steel AISI 316 L-port Seats in PTFE + 15% glass fiber Max. working pressure: 69 bar (1/2'' to 11/4''), 55 bar (11/2'' to 2'') Connection: BSP threaded ISO mounting flange With pneumatic actuator spring return type AS, spring to close, air to open
Specification
Value
DN inches NPS
1/2
If you have any questions about this product, please feel free to contact us.
